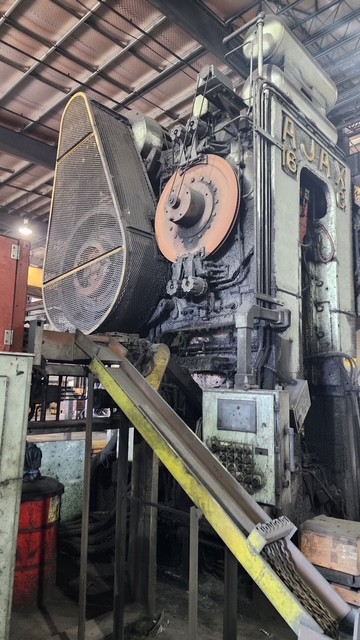

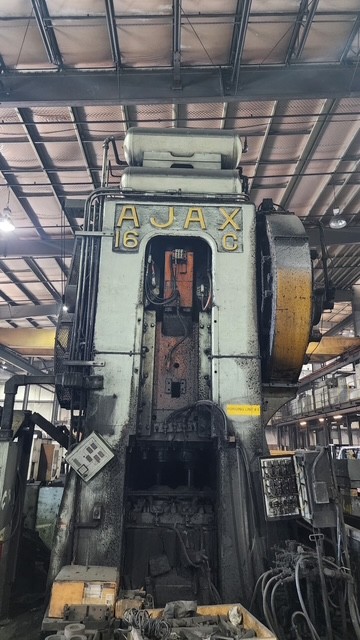

Ajax 1600 Ton Forging Press
- Currently hooked up and operational.
- Has standard wear and tear.
- Has Kobel Disc brake.
- Needs updates.
- Good option for forging producer interested in investing in a rebuild.
- Press specifications: from catalog, actual specifications will need to be checked.
- Stroke 12”
- Shut Height 35”
- SPM 65
- Motor 100 HP
- Motor RPM 1200 / 1000
- Floor space RL 12’ x FB 10’-9”x 17’7” Height above floor
- Depth below floor 1’-8”
Ajax 2″ Upsetter
Currently in storage and not operational.
This upsetter sat idle for a few years before we purchased it.
Good option for forging producer interested in investing in a rebuild.
Catalog Specifications:
- Header Slide Load Rating: 400 Tons
- Die Grip Rating: 248 Tons
- Approx. Total Weight: 39,000 lbs
- Floor Space (L-R x F-B): 7′ 0″ x 10′ 8″
- Height Above Floor: 6′ 8″
- Distance Below Floor: 0′ 6″
- Operating Air Pressure: 75 PSI
- Main Motor: 5 HP/900 RPM
- Gear Ratio: 18/77
- Strokes Per Minute: 55 SPM
- Header Slide Stroke: 9″
- Die Opening: 3 1/2″
- Stock Gather: 6″
- Hold-On: 2 1/2″
- Die Height: 14″
- Die Thickness: 6″
- Die Seat Length: 13″
- Tool and Die Space (max.): 28 1/2″
- Flywheel Diameter: 41″
- Clutch: 21″ – 4 Plate
Used 1000 Ton Ajax Forging Press
- This press is in house ready to rebuild.
- We’re ready to add optimal modernizations and automation to meet your forging needs.
- Save on lead time!
Used 1600 Ton National Clutch Piston
- Good condition.
- No cracks.
- This is a critical spare part you’ll want on hand.
- Ready to ship!
Used 1600 Ton National Clutch Piston Housing
- Good condition.
- No cracks.
- This is a critical spare part you’ll want on hand.
- Ready to ship!
Used 2500 Ton National Ram
- No cracks
- Surface rust
- Ready to ship!
